PFP FR Board - 60x600x1200mm (Single)

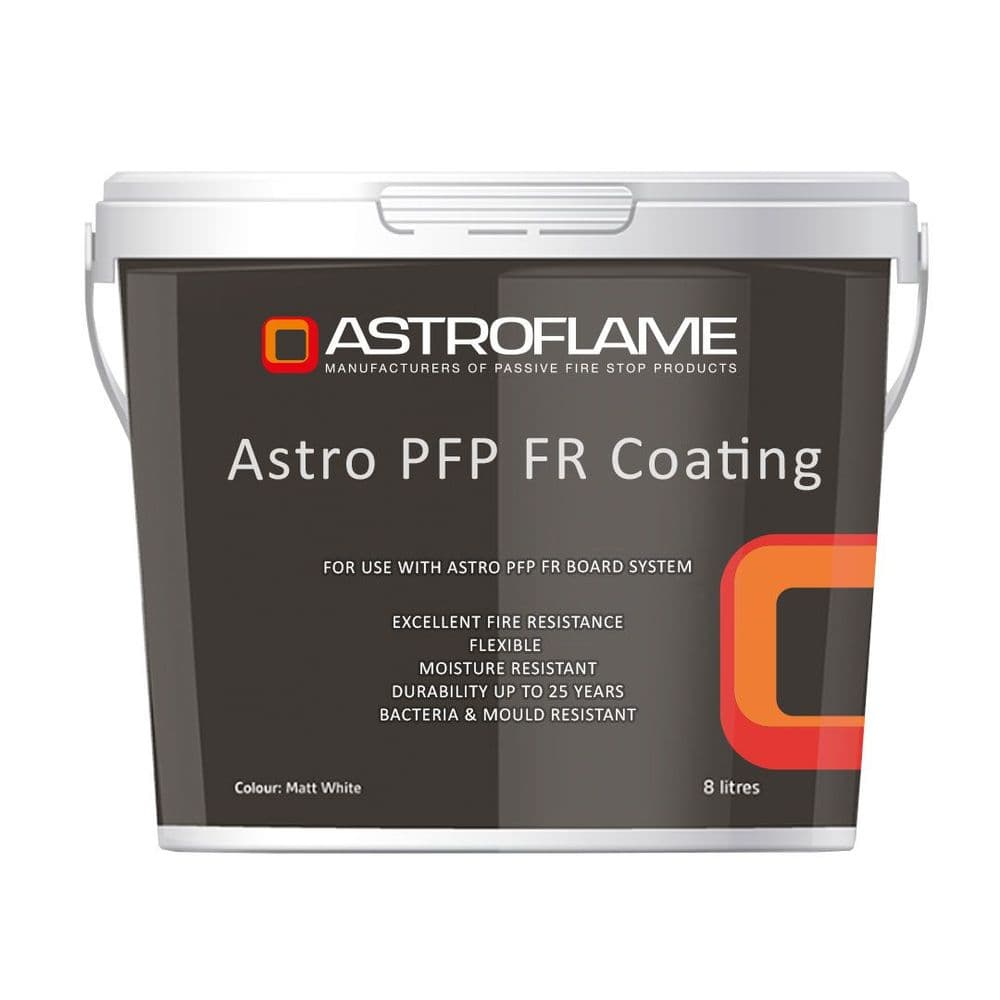

CE Marked PFP FR Boards | A high-density stone wool, over-coated with PFP FR Coating | Simple and very quick to install | Resists UV, humidity and frost | Must be used in conjunction with PFP FR Acrylic or PFP FR Coating 8L.
About the PFP FR Board Product
The PFP FR Board is designed to prevent the spread of fire and smoke through openings in fire rated walls and floors where openings are formed to allow the installation of multiple building services. It will also maintain the acoustic design performance in fire rated walls and floors.
The PFP FR Board consists of a high density stone wool core, over-coated with PFP FR Coating. The top coating provides additional protection by significantly reducing the permeability of the stone wool core and preventing the passage of hot gases, thus reducing the temperature rise on the unexposed side and reducing heat conduction through the building services.
PFP FR Board is available coated on one or two sides, depending on the seal design to provide the required fire resistance. On site, PFP FR Board must be used together with PFP Acrylic for sealing around building services, joints and edges of the FR Board and the surrounding construction.
For more information please download the Product Data Sheet under the Fire Test Reports
Product Size Availability
PFP FR Board Height: 60mm, Width: 600mm, Length: 1200mm - Colour White surface, Green core
For more sizes click here
30mm and 50mm boards only coated 1 sided also available P.O.A
Installation
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@intumescent.com
Maintenance
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.
Competency
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes
Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the manufacturer of the services and the wall/floor specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall/floor specification on Tel: +(0)1329 841416 or email sales@intumescent.com
Fire Test Reports
Download the following PFP Acrylic Product Data Sheet (PDS), Safety Data Sheet (SDS), Declaration of Performance (DoP), Technical Data Sheet (TDS), Certificate of Constancy of Performance (CoC) & European Technical Assessment Sheet (ETA).
-
Colour:White surface, Green core
-
Type:Fire Boards
-
Height:60mm
-
Width:600mm
-
Length:1200mm
-
Brand:intumescent.com
-
Condition:New
-
Product Code:AFPFPB60
