PFP FR Pipe Wrap - 200mm
PFP FR Pipe Wrap - 200mm
PFP FR Pipe Wrap - 200mm
PFP FR Pipe Wrap - 200mm
PFP FR Pipe Wrap - 200mm

PFP FR Pipe Wrap - 200mm

£41.41
(Inc. 20% VAT)
(£34.51 Exc. VAT)
Model
AFPFPPW200
Colour:
Grey
Type:
Fire Pipe Wrap
Size:
200mm
Condition:
New
Description

About the PFP FR Pipe Wrap Product

The PFP FR Pipe Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by plastic pipes, conduits or metal pipes with continuous combustible insulation, and may be used in drywalls, masonry or concrete walls and concrete floors.

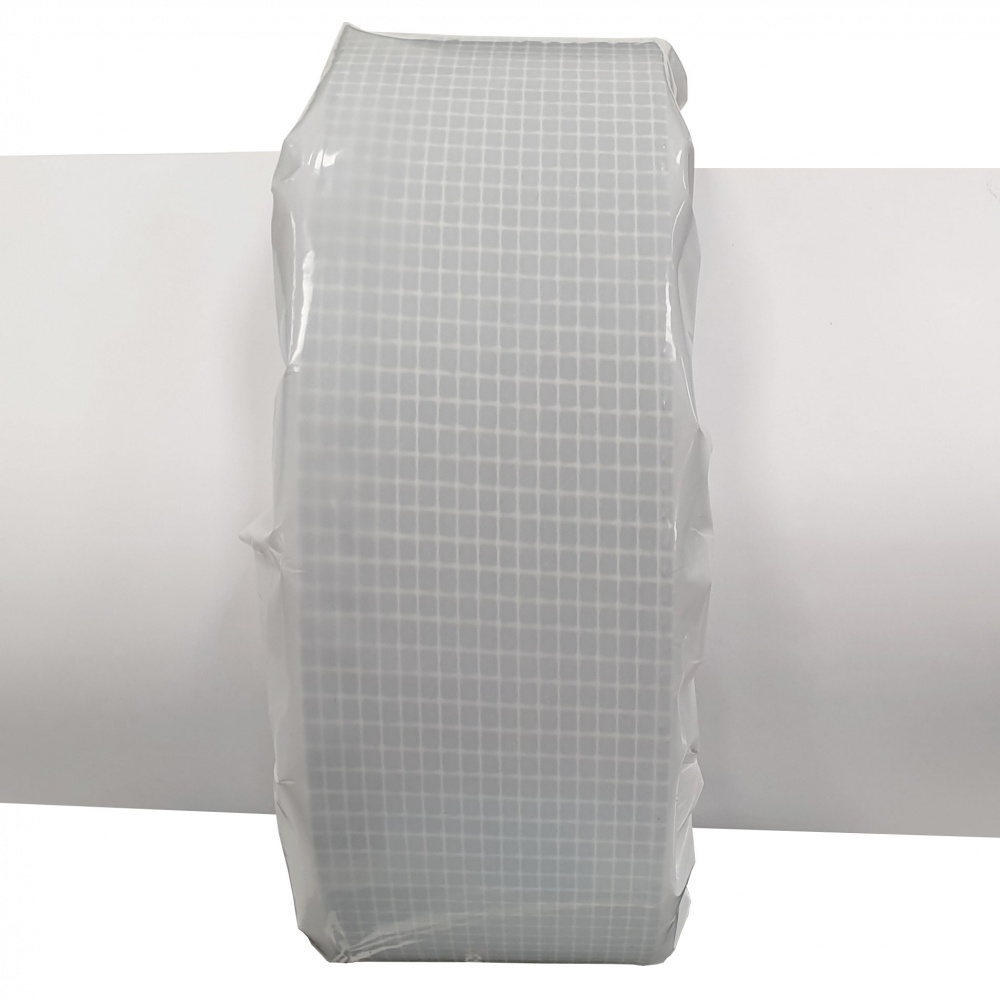

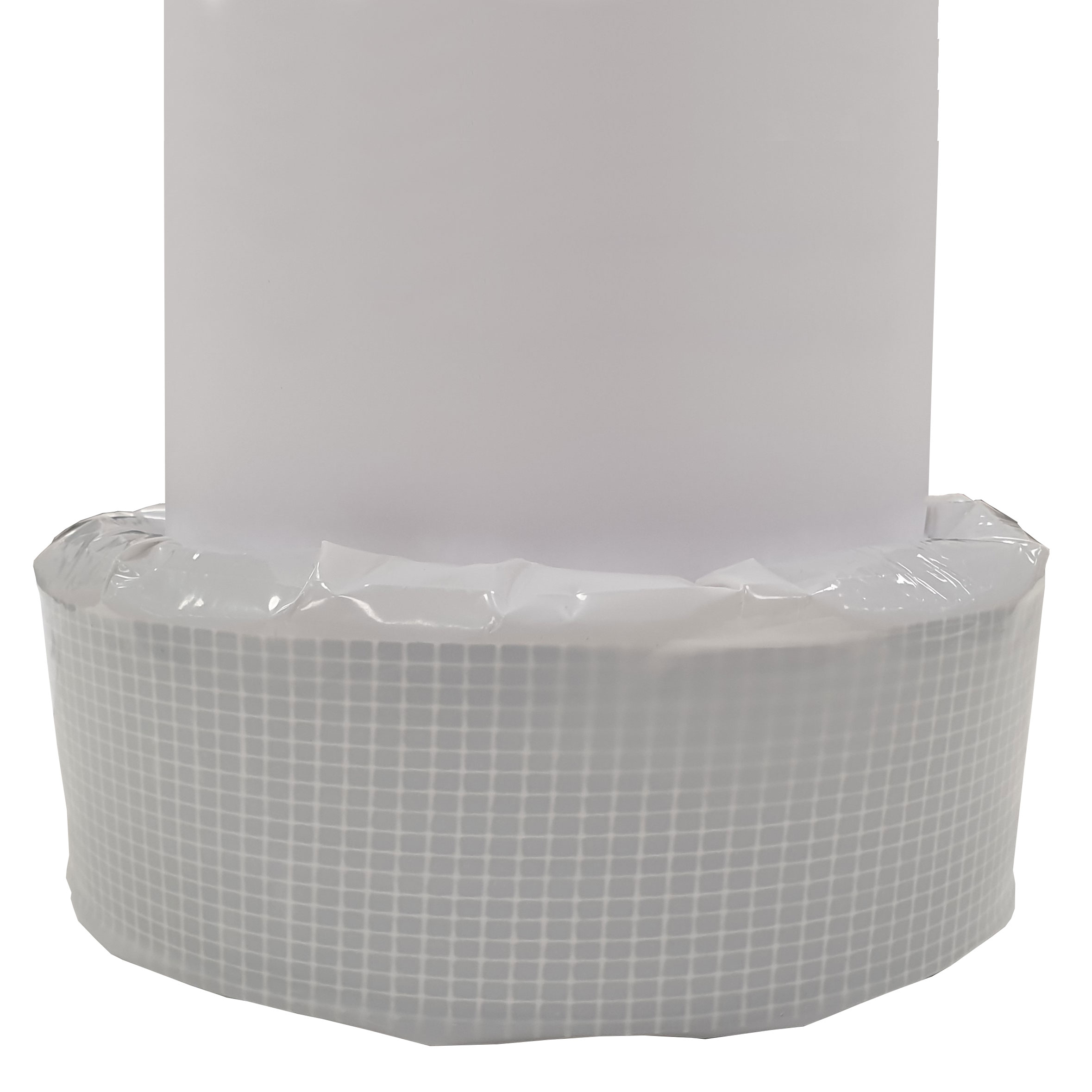

Each pipe wrap consists of a graphite based reactive intumescent strip, which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire. The pipe wrap is installed completely around the pipes or insulation and secured with the self adhesive tab. The annular space around the pipe wrap is sealed with PFP FR EX Mortar or PFP FR Boards.

For more information please download the Product Data Sheet under the Fire Test Reports

Product Size Availability

Fire Pipe Wrap Size: 200mm - Colour Grey
For more sizes click here

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@intumescent.com.

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on Tel: +(0)1329 841416 or email sales@intumescent.com.

Fire Test Reports

Download the following PFP FR Pipe Wrap Product Data Sheet (PDS), Safety Data Sheet (SDS), Technical Data Sheet (TDS), Declaration of Performance (DoP), Certificate of Constancy of Performance (CoC) & European Technical Assessment Sheet (ETA).

Fire Pipe Wrap Product Data Sheet

Fire Pipe Wrap Safety Data Sheet

Fire Pipe Wrap DoP Sheet

Fire Pipe Wrap CoC Sheet

Installation in the PFP FR Boards:

PFP FR Pipe Wrap (Board) TDS Sheet

Installation in the PFP FR EX Mortar:

PFP FR Pipe Wrap (Mortar) TDS Sheet

Fire Pipe Wrap ETA Sheet
