PFP Pipe Closer - 125mm, Depth 60mm
PFP Pipe Closer - 125mm, Depth 60mm
PFP Pipe Closer - 125mm, Depth 60mm
PFP Pipe Closer - 125mm, Depth 60mm
PFP Pipe Closer - 125mm, Depth 60mm

PFP Pipe Closer - 125mm, Depth 60mm

£16.52
(Inc. 20% VAT)
(£13.77 Exc. VAT)
Model
AFPFPPC125
Colour:
Red
Type:
Fire Pipe Collar
Size:
125mm
Depth:
60mm
Condition:
New
Description

About the PFP Pipe Closer Product

PFP Pipe Closers are designed to maintain the fire resistance of fire rated walls and floors where these are breached by continuous plastic pipes. The PFP Pipe Closer can be used in gypsum, masonry and concrete walls and with concrete floors.

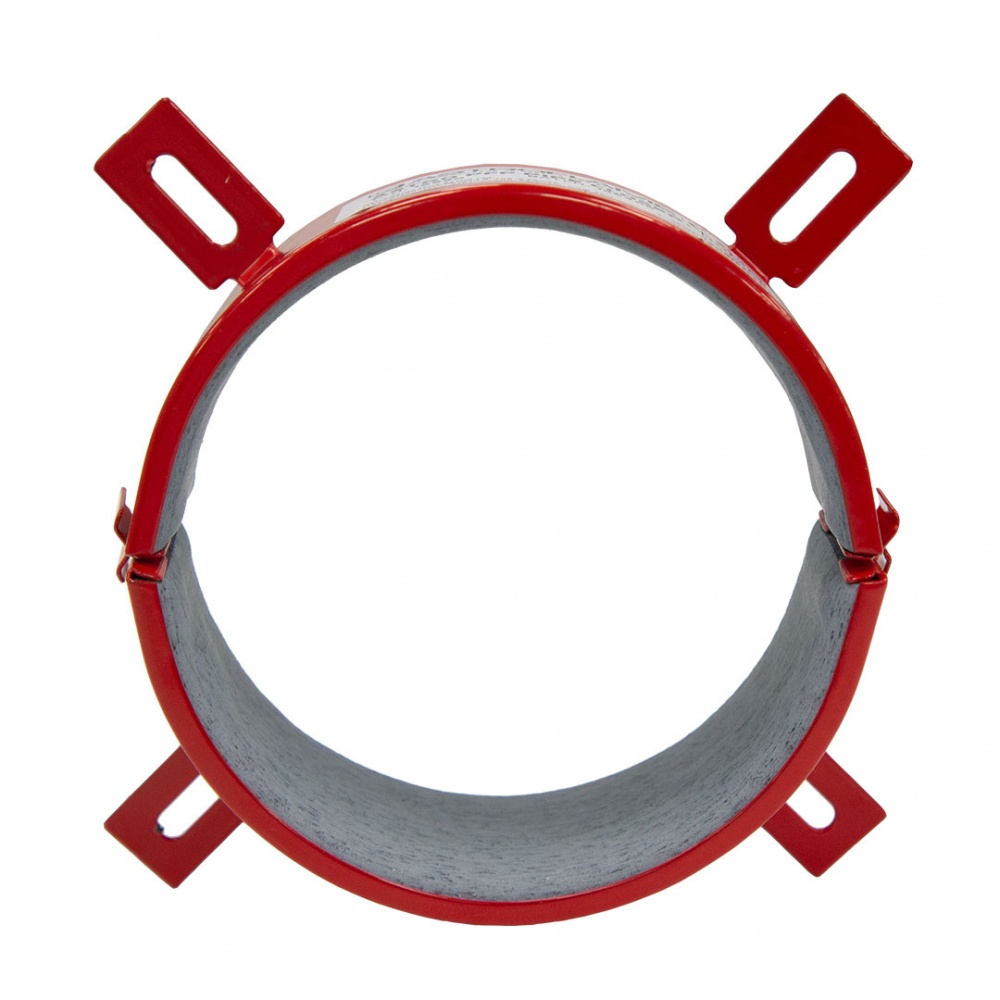

Each pipe collar consists of a Red coated circular steel shell that splits in two to fit around the service penetrations by means of a simple slide-lock system. The steel shell contains a graphite based reactive material which reacts when exposed to heat closing the openings left by the softening plastic pipe in fire.

When testing pipes, one can choose not to cap (or close) the pipe, or cap the pipe inside the furnace, or outside the furnace, or on both sides. The configuration chosen depends on the intended application of the pipe and/or the installation environment. The code defining if a pipe is capped is stated after the fire classification. For instance EI 60 C/U which means the pipe was capped inside the furnace, and uncapped outside the furnace. The test configuration defines the approvals possible.

For more information please download the Product Data Sheet under the Fire Test Reports

Product Size Availability

PFP Pipe Closer Size: 125mm x Depth: 60mm - Colour Red
For more sizes click here

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@intumescent.com.

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

Please refer to the ETA/UKTA sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on Tel: +(0)1329 841416 or email sales@intumescent.com

Fire Test Reports

Download the following PFP Pipe Closer Product Data Sheet (PDS), Safety Data Sheet (SDS), Video Files (VID), Technical Data Sheet (TDS), Declaration of Performance (DoP), Certificate of Constancy of Performance (CoC), European Technical Assessment Sheet (ETA) & UK Technical Assessment Sheet (UKTA).

PFP Pipe Closer Product Data Sheet

PFP Pipe Closer Safety Data Sheet

PFP Pipe Closer VID

PFP Pipe Closer DoP Sheet

PFP Pipe Closer TDS Sheet

PFP Pipe Closer CoC CE Sheet

PFP Pipe Closer CE ETA Sheet

PFP Pipe Closer CoC UKCA Sheet

UK Technical Assessment UKCA UKTA
